Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 192 |
Chamfer diameter 2 [mm]: | 192 |
Height [mm]: | 120.5, 121 |
Hub bore diameter [mm]: | 157 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 26 |
Number of mounting holes: | 6 |
Outside diameter [mm]: | 304 |
Part type: | Brake disc |
Thickness [mm]: | 30 mm |
Thread pitch [mm]: | 1,5 |
Thread size: | M12 |
Weight, kg]: | 11.5 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 177 |
Chamfer diameter 2 [mm]: | 177 |
Height [mm]: | 111 |
Hub bore diameter [mm]: | 152 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 28 |
Number of mounting holes: | 8 |
Outside diameter [mm]: | 335 |
Part type: | Brake disc |
Thickness [mm]: | 34 mm |
Thread pitch [mm]: | 1,5 |
Thread size: | M12 |
Weight, kg]: | 14.86 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 140 |
Chamfer diameter 2 [mm]: | 140 |
Height [mm]: | 91 |
Hub bore diameter [mm]: | 118 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 26 |
Number of mounting holes: | 6 |
Outside diameter [mm]: | 324 |
Part type: | Brake disc |
Thickness [mm]: | 30 mm |
Thread pitch [mm]: | 1,5 |
Thread size: | M12 |
Weight, kg]: | 11 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 192 |
Chamfer diameter 2 [mm]: | 192 |
Height [mm]: | 120.5, 121 |
Hub bore diameter [mm]: | 157 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 26 |
Number of mounting holes: | 6 |
Outside diameter [mm]: | 324 |
Part type: | Brake disc |
Thickness [mm]: | 30 mm |
Thread pitch [mm]: | 1,5 |
Thread size: | M12 |
Weight, kg]: | 12 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 140 |
Chamfer diameter 2 [mm]: | 140 |
Height [mm]: | 91 |
Hub bore diameter [mm]: | 118 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 26 |
Number of mounting holes: | 6 |
Outside diameter [mm]: | 304 |
Part type: | Brake disc |
Thickness [mm]: | 30 mm |
Thread pitch [mm]: | 1,5 |
Thread size: | M12 |
Weight, kg]: | 10 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 177 |
Chamfer diameter 2 [mm]: | 177 |
Height [mm]: | 111 |
Hub bore diameter [mm]: | 131 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 28 |
Number of mounting holes: | 8 |
Outside diameter [mm]: | 335 |
Part type: | Brake disc |
Thickness [mm]: | 34 mm |
Thread pitch [mm]: | 1,5 |
Thread size: | M12 |
Weight, kg]: | 15.7 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 120 |
Chamfer diameter 2 [mm]: | 120 |
Flange diameter [mm]: | 175 |
Height [mm]: | 102.5, 103 |
Hole diameter [mm]: | 14.5 |
Hub bore diameter [mm]: | 91.5 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 28 |
Number of mounting holes: | 10 |
Outside diameter [mm]: | 335 |
Part type: | Brake disc |
Thickness [mm]: | 34 mm |
Weight, kg]: | 15 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 158 |
Chamfer diameter 2 [mm]: | 158 |
Height [mm]: | 104 |
Hub bore diameter [mm]: | 135 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 26 |
Number of mounting holes: | 10 |
Outside diameter [mm]: | 330 |
Part type: | Brake disc |
Thickness [mm]: | 34 mm |
Thread pitch [mm]: | 1,5 |
Thread size: | M14 |
Weight, kg]: | 17 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 177 |
Chamfer diameter 2 [mm]: | 177 |
Height [mm]: | 129.5, 130 |
Hub bore diameter [mm]: | 131 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 28 |
Number of mounting holes: | 8 |
Outside diameter [mm]: | 330 |
Part type: | Brake disc |
Thickness [mm]: | 34 mm |
Thread pitch [mm]: | 1,5 |
Thread size: | M12 |
Weight, kg]: | 17.25 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 176 |
Chamfer diameter 2 [mm]: | 176 |
Flange diameter [mm]: | 206 |
For article or original number: | 03613010a.pe |
Height [mm]: | 118 |
Hub bore diameter [mm]: | 154 |
Inner diameter [mm]: | 182 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 26 |
Number of mounting holes: | 10 |
Outside diameter [mm]: | 335 |
Part type: | Brake disc |
Thickness [mm]: | 34 mm |
Thread pitch [mm]: | 1,5 |
Thread size: | M14 |
Weight, kg]: | 17.5 |

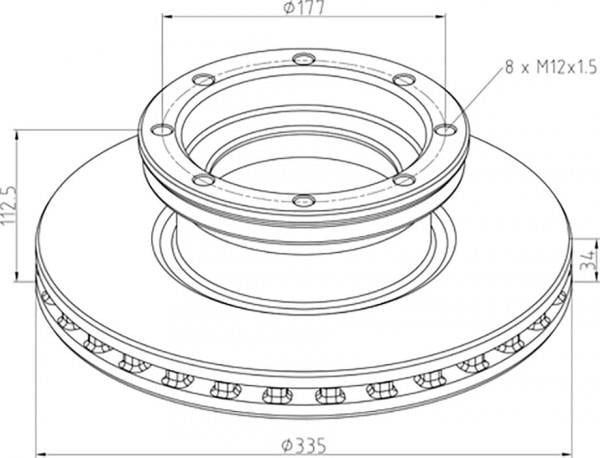

Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 177 |
Chamfer diameter 2 [mm]: | 177 |
Height [mm]: | 112.5, 113 |
Hub bore diameter [mm]: | 131 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 28 |
Number of mounting holes: | 8 |
Outside diameter [mm]: | 335 |
Part type: | Brake disc |
Thickness [mm]: | 34 mm |
Thread pitch [mm]: | 1,5 |
Thread size: | M12 |
Weight, kg]: | 17.3 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 192 |
Chamfer diameter 2 [mm]: | 192 |
Flange diameter [mm]: | 226 |
Height [mm]: | 120.5, 121 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 27 |
Number of mounting holes: | 6 |
Outside diameter [mm]: | 324 |
Part type: | Brake disc |
Thickness [mm]: | 30 mm |
Thread pitch [mm]: | 1,5 |
Thread size: | M12 |
Weight, kg]: | 17 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 122 |
Chamfer diameter 2 [mm]: | 122 |
Flange diameter [mm]: | 171 |
Height [mm]: | 93 |
Hole diameter [mm]: | 15 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 30 |
Number of mounting holes: | 10 |
Outside diameter [mm]: | 335 |
Part type: | Brake disc |
Thickness [mm]: | 34 mm |
Thread size: | M10 |
Weight, kg]: | 16.5 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 192 |
Chamfer diameter 2 [mm]: | 192 |
Flange diameter [mm]: | 226 |
Height [mm]: | 120.5, 121 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 27 |
Number of mounting holes: | 6 |
Outside diameter [mm]: | 304 |
Part type: | Brake disc |
Thickness [mm]: | 30 mm |
Thread pitch [mm]: | 1,5 |
Thread size: | M12 |
Weight, kg]: | 14.7 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 138 |
Chamfer diameter 2 [mm]: | 138 |
Features of execution: | With ring for abs sensor |
Features of execution 8: | With abs sensor ring |
Height [mm]: | 123 |
Hub bore diameter [mm]: | 117 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 28 |
Number of mounting holes: | 12 |
Outside diameter [mm]: | 330 |
Part type: | Brake disc |
Thickness [mm]: | 34 mm |
Thread size: | M12 |
Weight, kg]: | 19 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 120, 125 |
Chamfer diameter 2 [mm]: | 120 |
Height [mm]: | 113 |
Hole diameter [mm]: | 15 |
Hub bore diameter [mm]: | 140 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 27.5 |
Number of holes 1: | 3 |
Number of mounting holes: | 10, 3 |
Outside diameter [mm]: | 330 |
Part type: | Brake disc |
Thickness [mm]: | 34 mm |
Thread size 1: | M10 |
Weight, kg]: | 16.24 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 235 |
Chamfer diameter 2 [mm]: | 235 |
Height [mm]: | 135 |
Hub bore diameter [mm]: | 200 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 35 |
Number of mounting holes: | 10 |
Outside diameter [mm]: | 438 |
Part type: | Brake disc |
Thickness [mm]: | 45 mm |
Thread pitch [mm]: | 1,5 |
Thread size: | M16 |
Weight, kg]: | 35.25 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 176 |
Chamfer diameter 2 [mm]: | 176 |
For article or original number: | 036.125-10a |
Height [mm]: | 118 |
Hub bore diameter [mm]: | 154 |
Inner diameter [mm]: | 177 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 30 |
Number of mounting holes: | 10 |
Outside diameter [mm]: | 335 |
Part type: | Brake disc |
Thickness [mm]: | 34 mm |
Thread pitch [mm]: | 1,5 |
Thread size: | M14 |
Thread size 1: | M8 |
Weight, kg]: | 17 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 180 |
Chamfer diameter 2 [mm]: | 180 |
Features of execution: | With ring for abs sensor |
Features of execution 8: | With abs sensor ring |
Flange diameter [mm]: | 206 |
Height [mm]: | 124 |
Hub bore diameter [mm]: | 157 |
Location: | Rear axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 26 |
Number of mounting holes: | 12 |
Outside diameter [mm]: | 330 |
Part type: | Brake disc |
Thickness [mm]: | 34 mm |
Thread pitch [mm]: | 1,5 |
Thread size: | M12 |
Weight, kg]: | 17.3 |
Brake disc type: | Ventilated |
Chamfer diameter 1 [mm]: | 142 |
Chamfer diameter 2 [mm]: | 142 |
Height [mm]: | 119 |
Hole diameter [mm]: | 15 |
Hub bore diameter [mm]: | 111 |
Location: | Front axle |
Location in the car: | Left, Right |
Minimum thickness [mm]: | 37 |
Number of holes 1: | 2 |
Number of mounting holes: | 10 |
Outside diameter [mm]: | 375 |
Part type: | Brake disc |
Thickness [mm]: | 45 mm |
Weight, kg]: | 24 |
